Product Description:

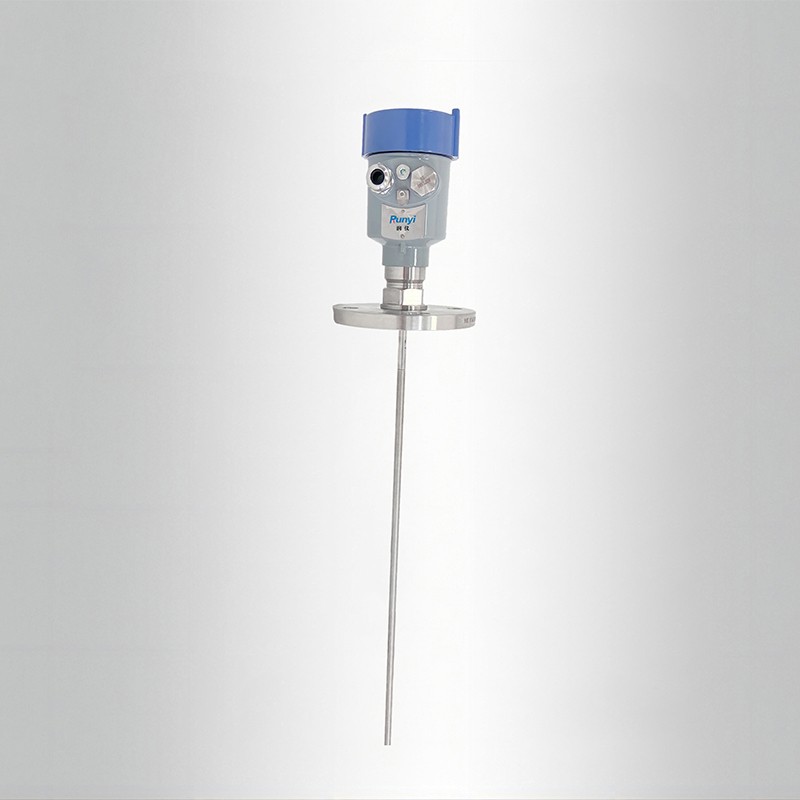

A contact type level measuring instrument using the time-domain reflection (TDR) measurement principle. It can be widely used for measuring liquids, slurries, and pastes, as well as for measuring solid media such as powders and particles. Selection of low dielectric constant media; Higher dynamic signals and narrower pulses bring higher accuracy and repeatability; Almost unaffected by complex working conditions such as water vapor, foam and dust
Media: Various liquids, solid particles
Frequency: 2GHz pulse
Measurement range: 0-6m
Accuracy: ± 5mm
Medium temperature: -40~200 ℃
Process pressure: -0.1~1.6MPa
Process connection: G1 1/2 thread or DN50 or above flange
Explosion proof grade: ExdIICT6Gb, ExiaICT6Ga
Protection level: IP66
Signal output: 4-20mA/Hart (two-wire/four wire)/RS485
Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;
Accuracy ≤ 3mm,; Measurement range ≥ 80m;
