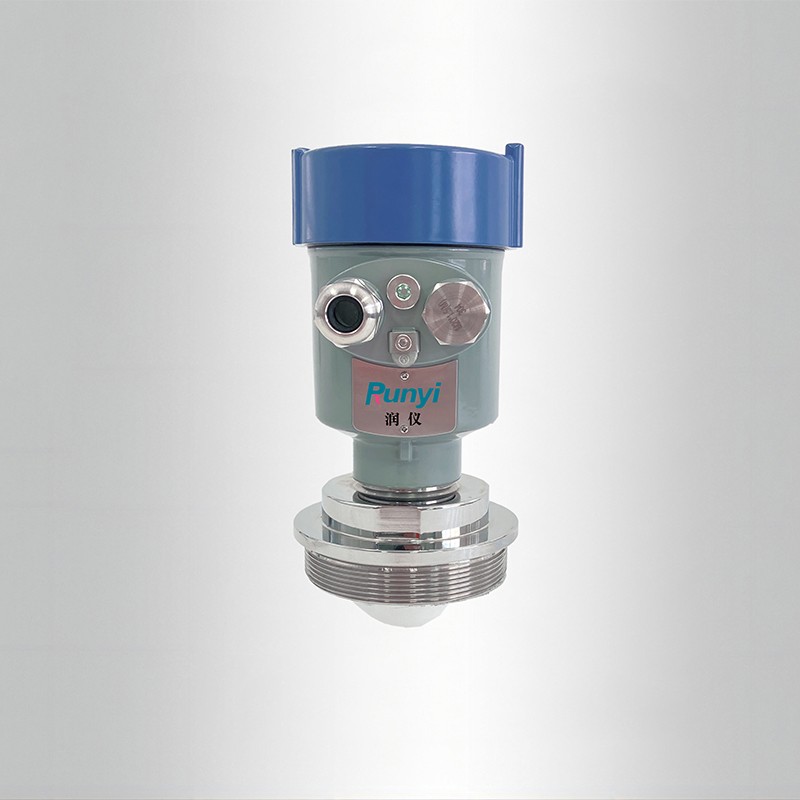

80GHz radar level gauge (threaded type)

The 80GHz continuous frequency modulation wave radar has a narrower beam angle, which can better penetrate the space between the stirring blades and the tank wall, reducing interference caused by the stirring blades;

The radar adopts a spherical lens, which has the characteristic of being less prone to large-scale condensation and suspension. Combined with proprietary algorithms, it has significant advantages in measuring condensation environment conditions; Radar has highly stable algorithms that can stably track liquid level measurements such as splashing, splashing, and eddies caused by stirring and spoilers.

Medium: Slightly corrosive liquid

Frequency: 76GHz~81GHz

Measurement range: 0-10/30/60/120m

Accuracy: ± 1mm

Medium temperature: -40~200 ℃

Process pressure: -0.1~1MPa

Process connection: G1 1/2 and G3 1/2 threads or flanges above DN50

Beam angles: 3 ° and 8 °

Explosion proof grade: ExdIICT6Gb, ExiaICT6Ga

Protection level: IP66

Signal output: 4-20mA/Hart (two-wire/four wire)/RS485/TTL

Bluetooth connection available

Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;

Accuracy ≤ 3mm,; Measurement range ≥ 80m;
