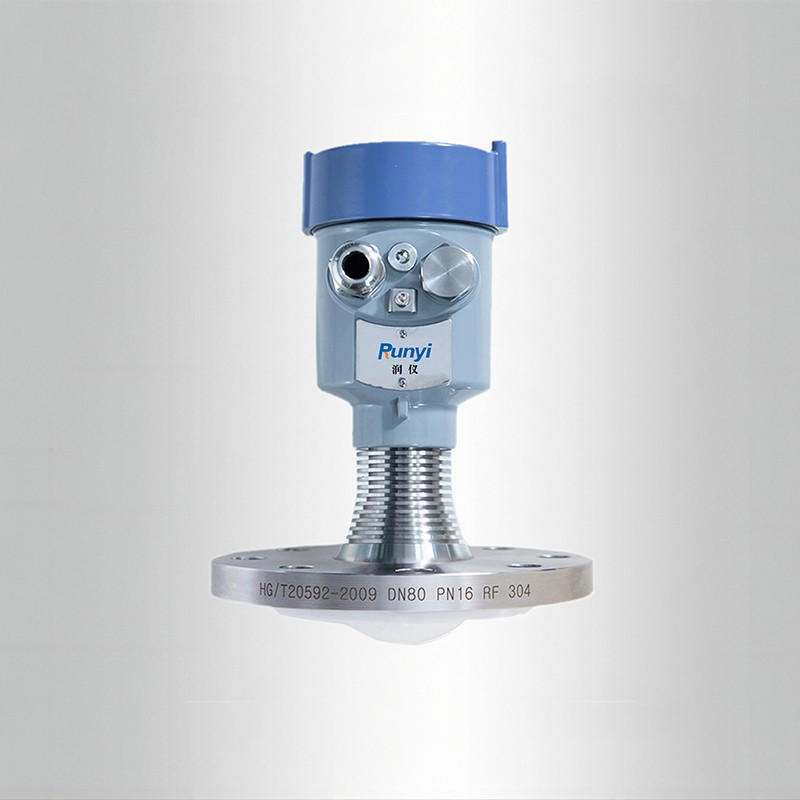

Product Description:
Adopting PTFE sealing surface integral lens to ensure that corrosive gases and liquids do not enter the interior of the equipment; The lens structure designed for high-pressure scenarios can withstand a pressure of 2MPa at temperatures up to 150 ℃; Specially designed antenna lens structure, capable of measuring small blind spots within 8cm;
Medium: Strong corrosive liquid
Frequency: 76GHz~81GHz
Measurement range: 0-10/30/60/120m
Accuracy: ± 1mm
Medium temperature: -40~200 ℃
Process pressure: -0.1~3MPa
Process connection: flange above DN50
Beam angles: 3 ° and 8 °
Explosion proof grade: ExdIICT6Gb, ExiaICT6Ga
Protection level: IP66
Signal output: 4-20mA/Hart (two-wire/four wire)/RS485/TTL
Bluetooth connection available
Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;
Accuracy ≤ 3mm,; Measurement range ≥ 80m;
