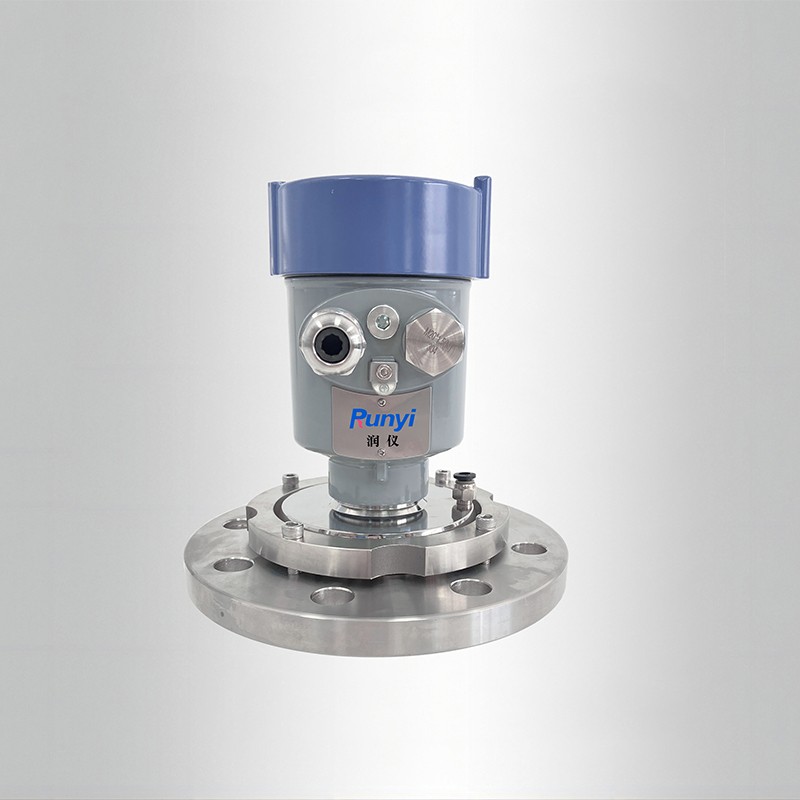

80GHz radar level gauge (omnidirectional type)

80G continuous frequency modulation wave measurement has better penetration for high dust environments; Mature tracking algorithms provide more stable tracking of dust levels, making it easy to handle high range scenarios such as cement, carbon powder, and plant ash; Unique measurement algorithm that can penetrate the powder and dust attached to the antenna surface, making the signal less likely to be obstructed.

Media: Solid particles, dust

Frequency: 76GHz~81GHz

Measurement range: 0-10/30/60/120m

Accuracy: ± 1mm

Medium temperature: -40~200 ℃

Process pressure: -0.1~1MPa

Process connection: DN80 or above flange

Beam angle: 3 °

Explosion proof grade: ExdIICT6Gb, ExiaICT6Ga

Protection level: IP66

Signal output: 4-20mA/Hart (two-wire/four wire)/RS485/TTL

Bluetooth connection available

Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;

Accuracy ≤ 3mm,; Measurement range ≥ 80m;
