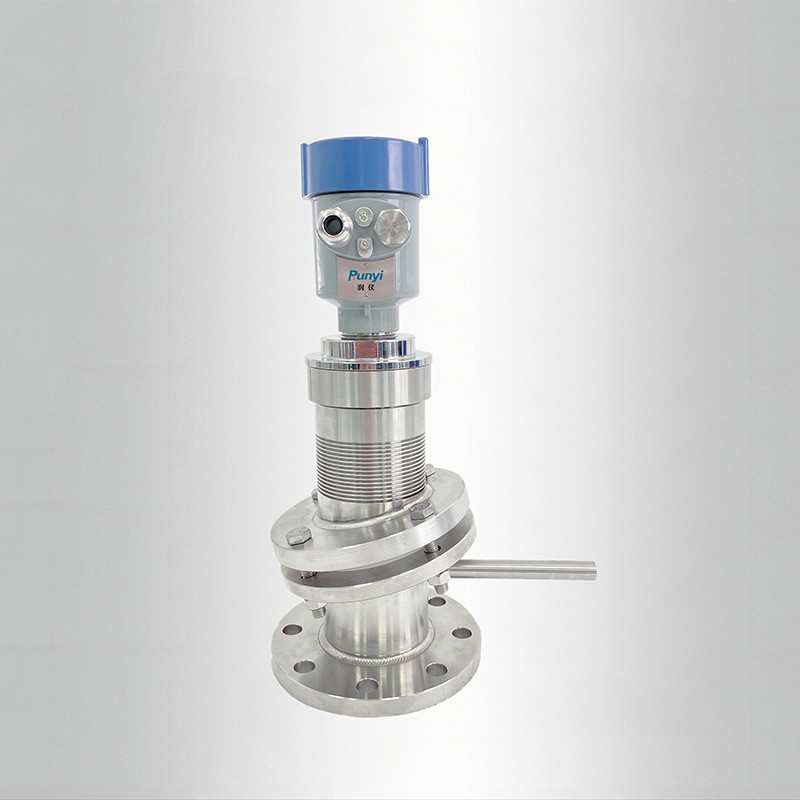

Product Description:
80G continuous frequency modulation wave combined with a 3 "beam angle achieves high penetration and can penetrate thick quartz glass, achieving high-temperature insulation; Specially designed shaped glass can withstand a process pressure of 10MPa at a process temperature of 200 ℃;
Medium: High temperature medium
Frequency: 76GHz~81GHz
Measurement range: 0-10/30/60/120m
Accuracy: ± 1mm
Medium temperature: 200~1000 ℃
Process pressure: -0.1~10MPa
Process connection: G3 1/2 thread and DN80 or above flange
Beam angle: 3 °
Explosion proof grade: ExdIICT6Gb, ExiaICT6Ga
Protection level: IP66
Signal output: 4-20mA/Hart (two-wire/four wire)/RS485/TTL
Bluetooth connection available
Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;
Accuracy ≤ 3mm,; Measurement range ≥ 80m;
