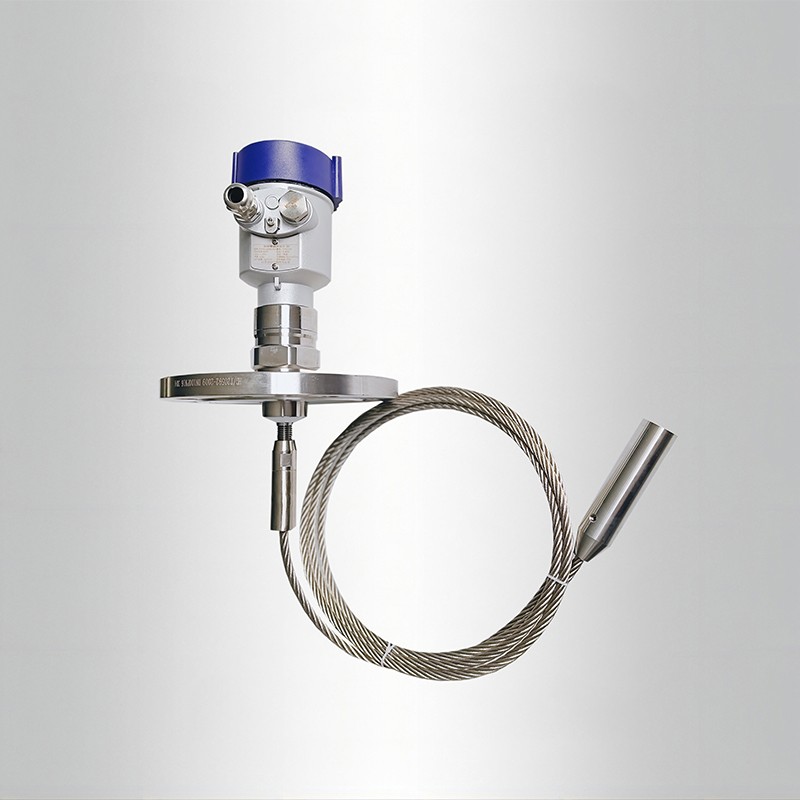

Guided wave radar level gauge (cable type)

A contact type level measuring instrument using the time-domain reflection (TDR) measurement principle. It can be widely used for measuring liquids, as well as for measuring solid media such as powders and particles. Selection of low dielectric constant media; Higher dynamic signals and narrower pulses bring higher accuracy and repeatability; Almost unaffected by complex working conditions such as water vapor, foam and dust

Media: Various liquids

Frequency: 2GHz pulse

Measurement range: 0-30m

Accuracy: ± 5mm

Medium temperature:- 40~200℃

Process pressure:- 0.1~1.6MPa

Process connection: G1 1/2 thread or DN50 or above flange

Explosion proof grade: ExdIICT6Gb，ExiaIICT6Ga

Protection level: IP66

Signal output: 4-20mA/Hart (two-wire/four wire)/RS485

Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;

Accuracy ≤ 3mm,; Measurement range ≥ 80m;
