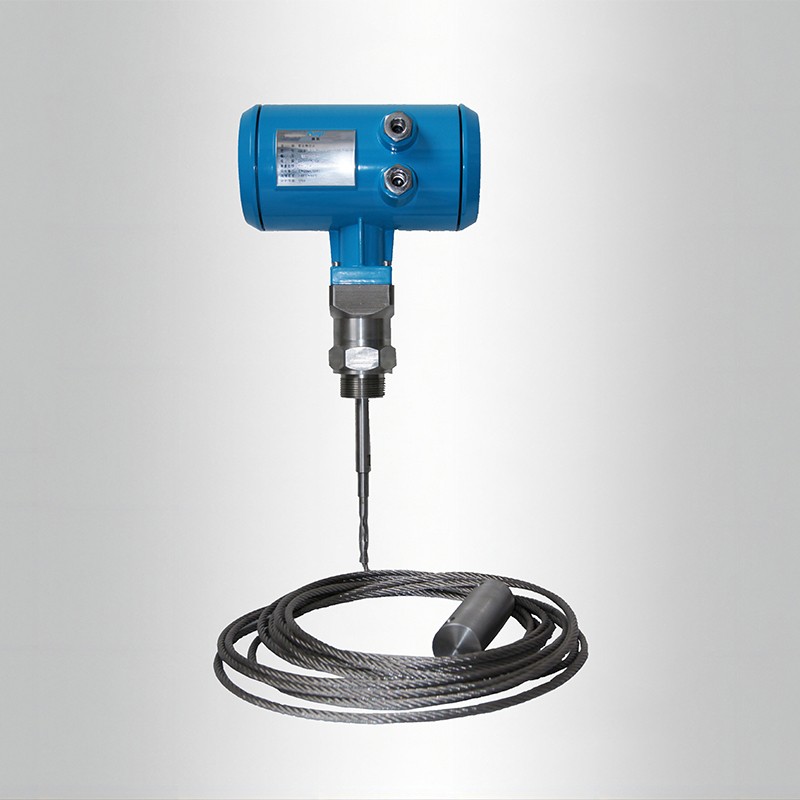

Product Description:
Suitable for media with high voltage and low dielectric constant, which are hazardous, such as liquid ammonia.
Medium: Various liquids, high pressure
Frequency: 2GHz pulse
Measurement range: 0-30m
Accuracy: ± 5mm
Medium temperature: -40~200 ℃
Process pressure: -0.1~4MPa
Process connection: G1 1/2 thread or DN100 or above flange
Explosion proof grade: ExdIICT6Gb, ExiaICT6Ga
Protection level: IP66
Signal output: 4-20mA/Hart (two-wire/four wire)/RS485
Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;
Accuracy ≤ 3mm,; Measurement range ≥ 80m;
