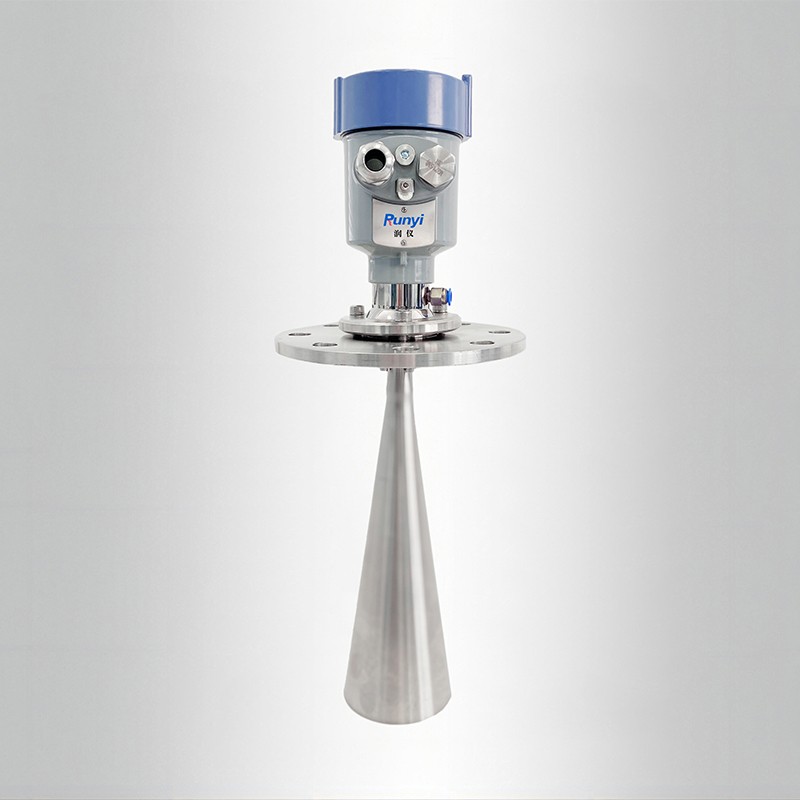

Product Description:
Suitable for measuring various powders, able to overcome dust environments, and can adjust radar emission angles
Media: Solid particles, dust
Frequency: 26GHz
Measurement range: 0-30m
Accuracy: ± 10mm
Medium temperature: -40~200 ℃
Process pressure: -0.1-2MPa
Process connection: DN80 or above flange
Explosion proof grade: ExdIICT6Gb, ExiaICT6Ga
Protection level: IP66
Signal output: 4-20mA/Hart (two-wire/four wire)/RS485
Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;
