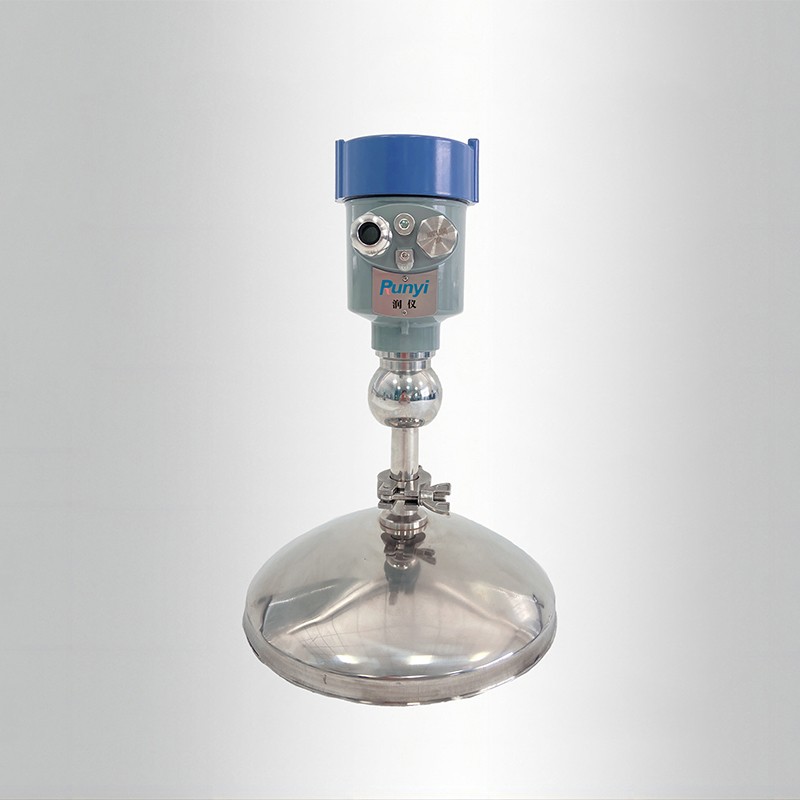

Product Description:
Suitable for various solid media, strong dust, and easy crystallization scenarios. Due to structural reasons, it is only suitable for flange installation with a diameter of DN200 or above. The beam angle is small and can measure distances further
Medium: liquid, solid
Frequency: 26GHz
Measurement range: 0-70m
Accuracy: ± 15mm
Medium temperature:- 40~200℃
Process pressure:- 0.1~2MPa
Process connection: DN200 or above flange
Explosion proof grade: ExdIICT6Gb，ExiaIICT6Ga
Protection level: IP66
Signal output: 4-20mA/Hart (two-wire/four wire)/RS485
Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;
Accuracy ≤ 3mm,; Measurement range ≥ 80m;
