Product Description:
overview

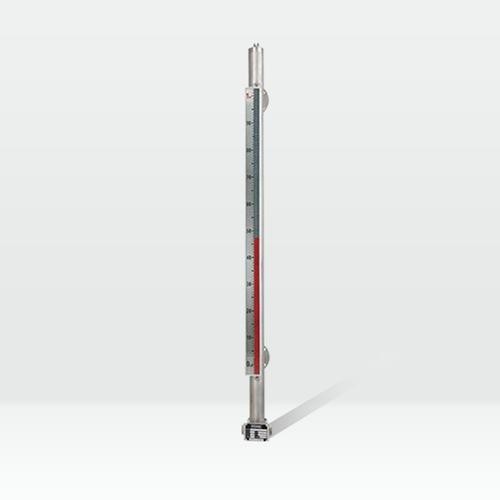

UHZ type magnetic flap level gauge, suitable for liquid level measurement in high temperature and high pressure environments,
z. The high process temperature of UI is 520 ℃, and the high working pressure of z.ui is 32MPa
◆ Technical parameters:
Measurement range: 200-8000mm
Work pressure: 0.6-32MPa
Working temperature: ＜ 520℃
Medium density: 0.4-2.0g/cm3
Connecting flange: DN20、DN25
texture of material: 304, 321, 316
◆ Characteristics
1. Using a float as the measuring element and a magnetic steel driven flip display, no energy is required.
2. Equipped with upper and lower limit switch outputs, it can achieve remote alarm and limit control.
3. Equipped with a transmitter, remote indication, detection, and control of liquid level can be achieved.
4. The entire measurement process has no blind spots, clear display, intuitive readings, and a large measurement range.
