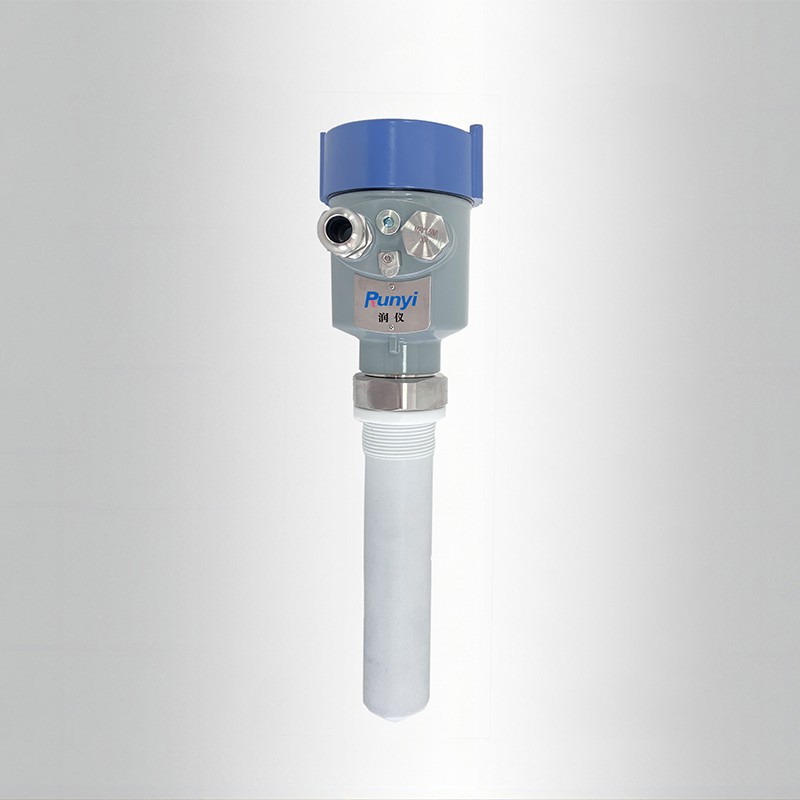

Product Description:
PTFE wrapping has good corrosion resistance and is suitable for most solid and liquid media. It has a small measurement distance and a lower signal than ordinary 26GHz radar level gauges;
Medium: Highly corrosive liquid
Frequency: 26GHz
Measurement range: 0-10m
Accuracy: ± 5mm
Medium temperature: -40~120 ℃
Process pressure: -0.1~0.3MPa
Process connection: G1 1/2 thread or DN50 or above flange
Explosion proof grade: ExdIICT6Gb, ExiaICT6Ga
Protection level: IP66
Signal output: 4-20mA/Hart (two-wire/four wire)/RS485
Beam angle ≤ 3 degrees; Measurable medium temperature -70 ℃ to+800 ℃;
Accuracy ≤ 3mm,; Measurement range ≥ 80m;
